SMARTVATTEN VERTO

System description

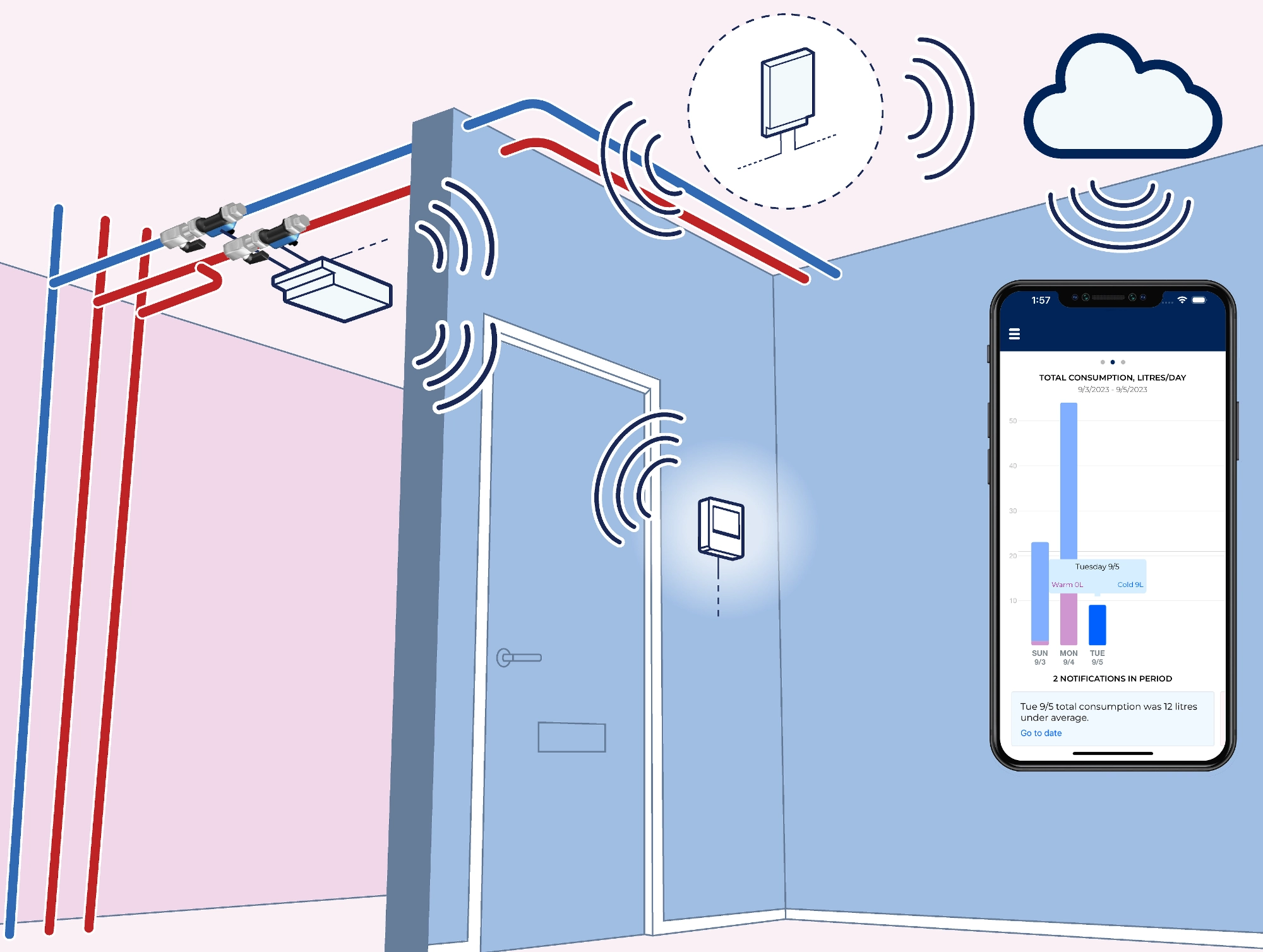

The Smartvatten Verto submetering system consists of household-specific and property-specific modules.



Smartvatten Verto Module 2



In the apartment or unit

Household-specific flow sensors are installed in each apartment or unit, along with household units and household displays.

The household display enables residents to monitor their consumption of hot and cold water. The household display could be installed by the front door or in any other location where it's easy to see for residents.

Household units calculate the water consumption and send data to the collecting unit via the building's electricity network.

In buildings

A collection and remote reading unit is installed in the main electrical cabinet of each property.

All consumption readings can be obtained from the collection unit. The system can be read remotely using the mobile network or a static IP address to transfer data to the browser-based VertoLive system.

Installation of meters

When the installation of meters is scheduled, efforts are made to ensure that water enters the household via a single pipe so only one cold water meter and one hot water meter are needed for each household.

As the circulation of hot water ends before the hot water meter, the pipe system must be metered in such a way that the meter is as close to the water outlets as possible. According to building regulations, the "waiting time" for hot water may be a maximum of 20 seconds.

Smartvatten Verto Module 2

MODULE 2

(Permanent connection)

1 x hot water
1 x cold water


Smartvatten Verto Module 2

MODULE 3

2 x hot water
1 x cold water

Smartvatten Verto Module 2

MODULE 4

2 x hot water
2 x cold water
