SMARTVATTEN VERTO

Technical Details

Technical hardware details

Verto huoneistonaytto

Unit Display

HVAC NUMBER 4466918

Dimensions: 67 x 130 x 35 mm (L x W x H)
Protection class: IP20
Batteries: 2 kpl LR6 AA-size alkaline battery. Minimum action potential 2.2V
Battery durability is 2–5 years.
The resident can change the batteries.
Ambient temperature: +5°C…55°C
FSK-radio 433.7...434.MHz 10 dBm ETSI 300 220

Collection Unit

EVG-S HVAC NUMBER 4466916 / EVG-SA gateway SIM card (gsm)
EVG-E HVAC NUMBER 4466917 / EVG-EA gateway ethernet

Dimensions: 163 x 129 x 35 mm (k x l x s)
Protection class: IP54
Ambient temperature: +5°C…..55°C
4 kpl I/O impulse channels
Capacity: consumption data of 300 household units
LoRa-radio 433.3MHz
Transmission power: max 10 dBm ERP
Duty cycle ETSI 300 220
NB-IoT connection SIM card or TCP/IP gateway ethernet
Supply voltage: EVG-S 230V, ~50Hz ja EVG-E 230V, ~50Hz

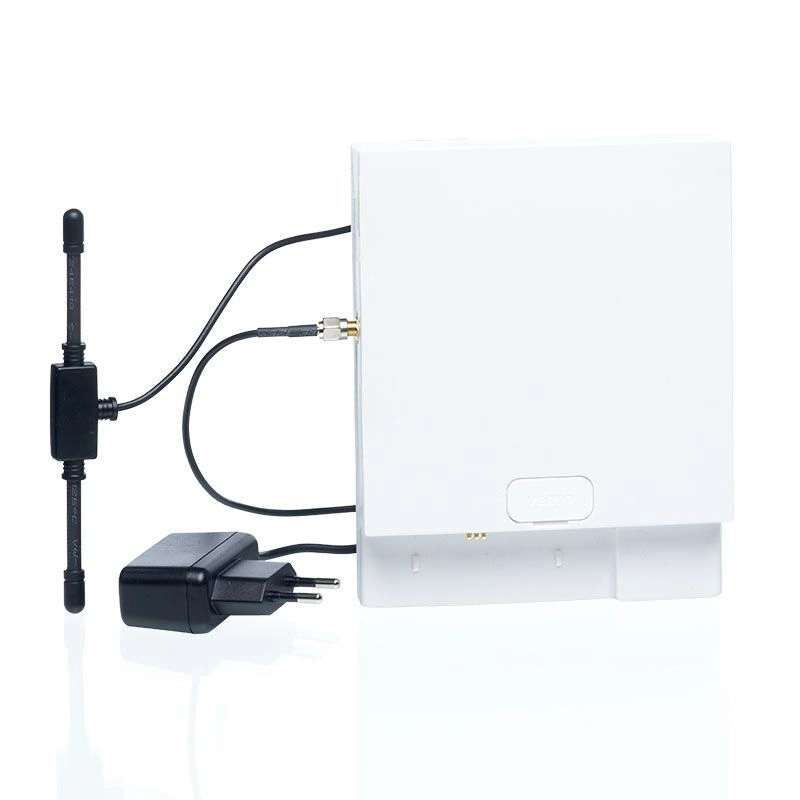

Verto collection unit

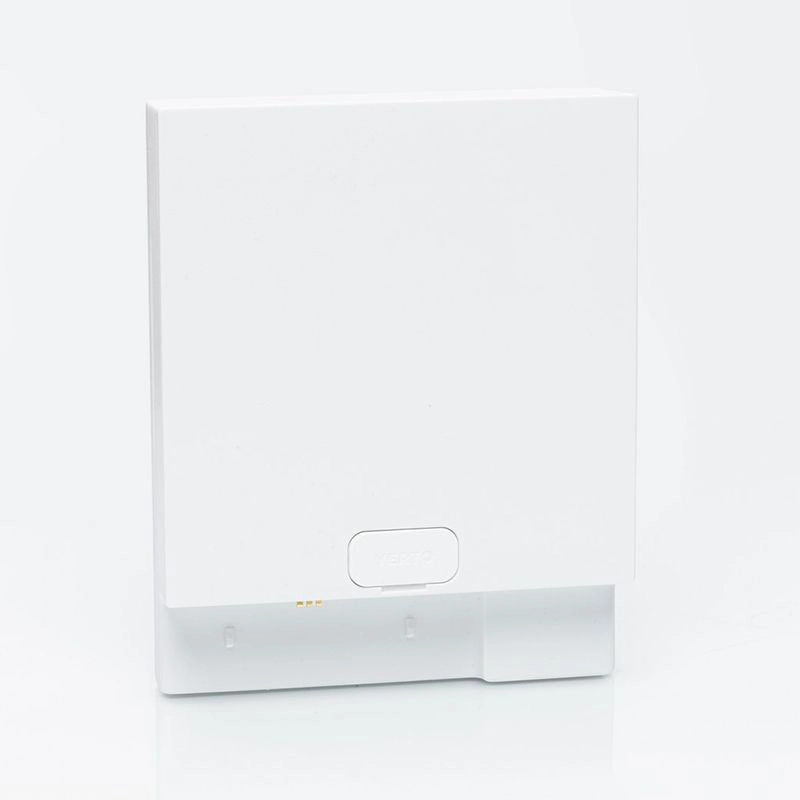

Verto household unit

Household Unit

HVAC NUMBER 4466914

Dimensions: 163 x 129 x 35 mm (k x l x s)
Protection class: IP54
Ambient temperature: +5°C…55°C
LoRa-radio 433.3MHz
Transmission power: max 10 dBm ERP. Duty cycle
ETSI 300 220
FSK-radio 433.7...434.MHz 10 dBm ETSI 300 220

Supply voltage:
EVH_RB
Battery voltage 3.6V. Verto Li-Th battery package.
Only Verto can change the battery package.

Optional supply voltage available EVH-R230: 230V, ~50Hz

Flow Sensor V-15U

HVAC NUMBER 4466913

V-15U ultrasound flow sensor (hot and cold water)
1m cable included

Nominal size: DN 15 (R ½)
Pressure class: PN 10
Max. temperature: 70 °C
Flow area R40
Flow Q3: 1,6 m3/h
Backpressure valve: Included (pressure relief 7 bar)

MID qualification approval 2014 / 32 / EU requirements.

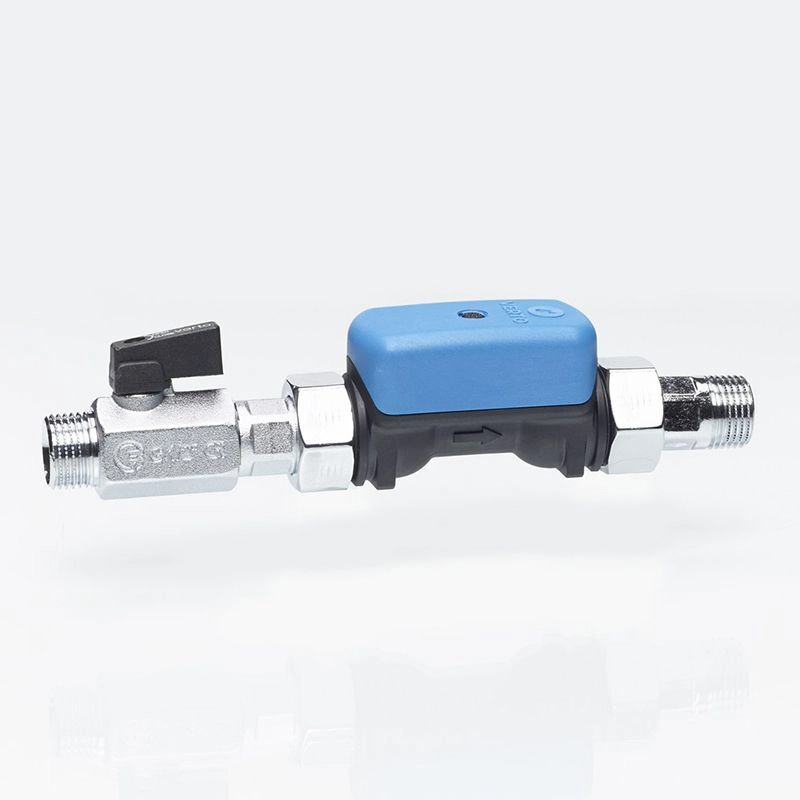

Verto flow sensor

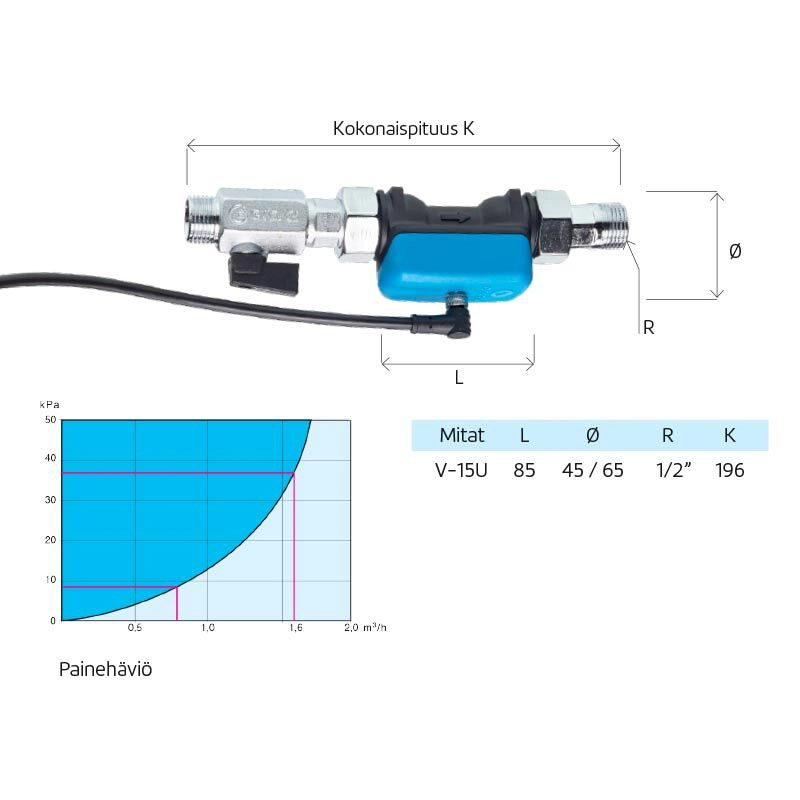

Verto virtausanturi painehavio
